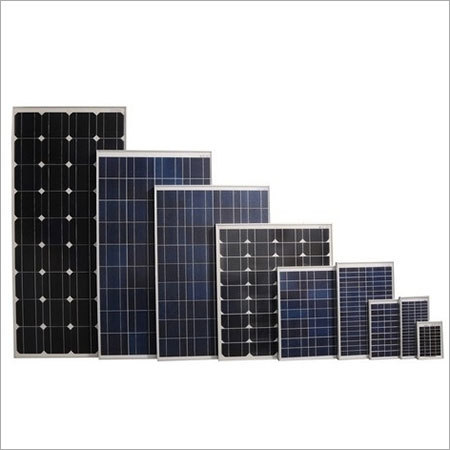

10 W SOLAR PANEL

10 W SOLAR PANEL
10 W SOLAR PANEL
Product Code : ASP10W
Brand Name : APOLLO SOLAR PANEL
Product Description

We are offering to our valuable clients a high quality range of 10 W SOLAR PANEL. This solar panel is made using high quality raw material and advanced technologies with standard designing. This range of Solar Panels is checked for quality test on various safety parameters. The solar panel has high resistant towards the winds, corrosion and the hailstones this ensure its longer life. The 10 W SOLAR PANEL is capable of generating power supply of 10W and available in the market at reasonable price.

Main Features:



  • Light in weight
  • Long lasting
  • High efficient power production



TECHNICAL SPECIFICATION

Electrical Parameters for 10W solar panel

Model ASP36C010
Rated Power(Pmax) watt
10
Volt at Max. power(Vmp in volt)
17
Open circuit voltage(Voc in volt)
21
Current at Max. Power(Imp in Amp)
0.59
Short circuit current(Isc in Amp)
0.67
Fill factor(FF)
>67
Module efficiency(%)
10~12
Standard Test Condition
Irradiance :1000W/M2 temp: 25.C, & AM:1.5G spectrum
Temp.Coeff. of Pmax(%/K)
-0.44
Temp.Coeff. of Voltage(mV/K) -2.13
Temp.Coeff. of Current(mA/K) 4.46
Max. system voltage(Volt)
600
Noct(Nominal Operating Cell temp in .c)
47.0+-2
Tolarence of rated power(%)
+-3



Mechanical Parameters

Family No.of Cells
Cells
Glass
Alu.Frame
 Junction Box
Cable & Connector
Dimension
Weight
 ASP36C

9x4

18x2

Poly
High transmission, low iron.tempered and textured glass.3.2mm

Silver

Anodized

Aluminum

Alloy

2 Rail,No Diodes
N/A

330X345X22(mm)

or

12.99x13.58x0.86

(inch)

1.45 K.G

*WARRANTY: SOLAR PANEL PERFORMANCE WARRANTY 25 YEARS.

Trade Information
  • Main Domestic Market
  • All India
